The MaxiForce® Air Lifting Bag is a thin, strong, molded envelope available in 14 different sizes. It is made from 3 layers of Neoprene covered Aramid fiber reinforcement and has the power to lift, move or shift weights up to 89 tons (80.9 metric tons) per bag. Control equipment and components play a critical role in successful lifting bag use and unlike other lifting bag systems, Paratech manufactures all of its major control components. This assures the quality of the lifting bag system from inflation to deflation.
SAFETY: MAXIFORCE® Air Lifting Bags are extremely tough, made of Neoprene, embedded with three (3) full layers of Aramid fiber reinforcement on each side, giving the bags tremendous strength at full inflation. Each Air Lifting Bag has been subjected to a stringent factory pressure test to assure maximum operator safety.
CAPACITY: Does the height/weight capacity match the task? Non-emergency applications may only require one or two sizes. Emergency Service providers need a variety of lifting capacities.
SHAPE: Match the shape of the bag to the contact area of the load to maximize your effectiveness. Use rectangular shaped bags against linear loads and when lifting on hills or inclines. Square bags are great for stacking on flat surfaces. Rescue crews should have both square and rectangular lifting bags.
THICKNESS: The thinner the Lift Bag the better. The most notable feature of quality manufacturing is the ability to produce a thin, tough lifting bag.
MAXIFORCE Air Lifting Bags range in thickness from 3/4 in(1.9 cm) to 1 in(2.5 cm).
MATERIAL: Neoprene with Aramid reinforcement comprise most of the lift bag materials. These materials provide strength, durability, flexibility and chemical resistance. MAXIFORCE was the first Aramid reinforced high pressure Lift Bag.
SURFACE: Small molded raised bumps provide an interlocking surface for
stacking 2 lift bags. Once again MAXIFORCE was the first with an
POSITIONING EYELETS: At least 2 on all Lift Bags with a 12.9 ton rating or higher. A must for rescue work. Allows for vertical placement, safe retrieval and carrying.
MARKINGS: Technical data is molded into the bag surface. Warnings are permanently labeled. The famous “X” marks the center
of the load.
AIR INLET: Brass with maximum pull strength. The inlet is threaded to receive a brass inflation nipple. Why brass? No corrosion. Easy to repair.
WORKS QUIETLY: Completely silent in use. There are no engine sounds or loud mechanical noises when MAXIFORCE is used.
Paratech® — Videos
Maxiforce Air Lifting Bags

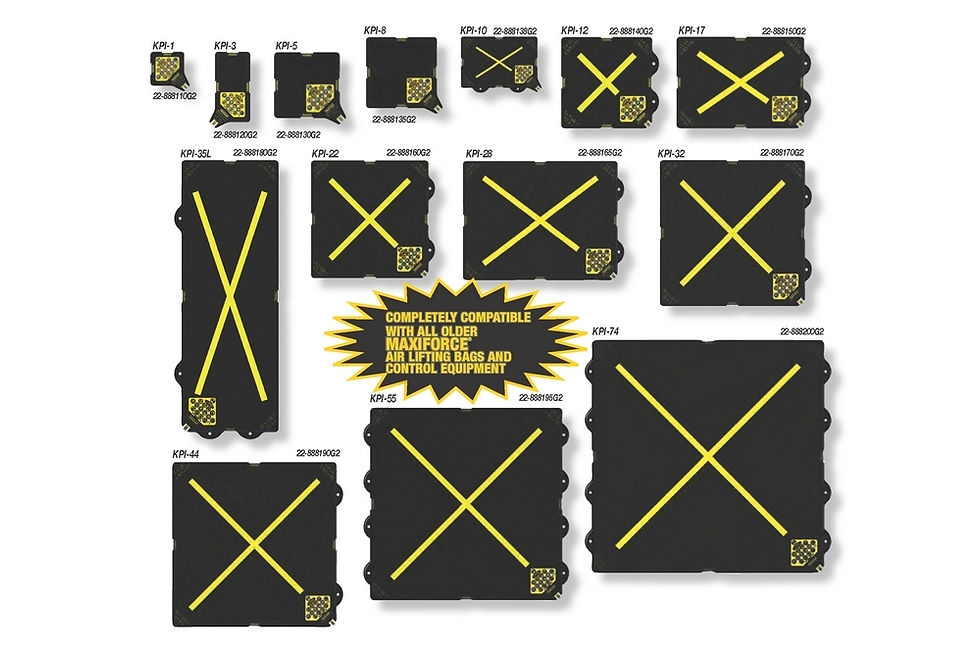

Description Dimensions in / mm Max Lift US Ton / Met Ton Max Lifting Height in / mm Weight lb / kg 22-888110G2 KPI-1 6x6x¾ 152x152x19 1.5/1.3 3.0/76 1.2/0.6 22-888120G2 KPI-3 6x12x¾ 152x305x19 3.5/3.2 3.5/89 2.3/1.0 22-888130G2 KPI-5 10x10x¾ 254x254x19 5.4/4.9 5.4/137
22-888135G2 KPI-8 12x12x⅞ 305x305x22 8.2/7.5 6.4/163 5.5/2.5 22-888138G2 KPI-10 12x18x⅞ 305x457x22 12.9/11.7 7.1/180 8.3/3.7 22-888140G2 KPI-12 15x15x⅞ 381x381x22 13.7/12.4 8.1/206 8.8/4.0 22-888150G2 KPI-17 15x21x⅞ 381x533x22 19.0/17.3 9.0/226 12.0/5.4 22-888160G2 KPI-22 20x20x⅞ 508x508x22 25.6/23.2 10.8/274 15.9/7.2 22-888165G2 KPI-28 20x26x⅞ 508x660x22 34.0/30.9 11.8/299 20.1/9.1 22-888170G2 KPI-32 24x24x⅞ 610x610x22 38.0/34.4 13.0/330 22.0/10.0 22-888180G2 KPI-35L 15x42x⅞ 381x1066x22 39.5/35.8 9.5/241 24.5/11.1 22-888190G2 KPI-44 28x28x⅞ 711x711x22 52.7/47.8 15.3/388 30.0/13.6 22-888195G2 KPI-55 32x32x1 812x812x25 69.7/63.3 17.0/432 45.2/20.5 22-888200G2 KPI-74 37x37x1 939x939x25 89.2/80.9 20.0/508 58.0/26.3
